ROTOTHERM OVEN
ROTOTHERM OVEN

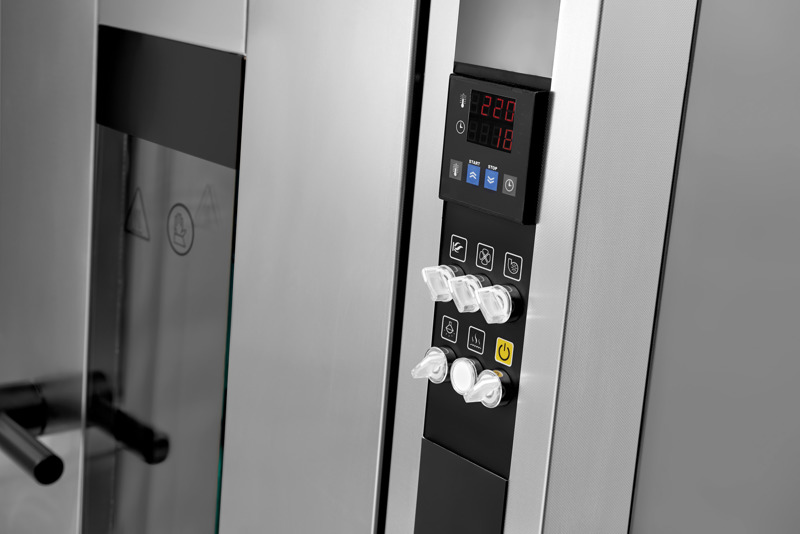

The rototherm ovens feature an open steam system, allowing precise adjustment of the desired steam level. The control panel can be customized as a touchscreen or manual rotary type, and the ovens can be delivered either fully assembled or in a dismantled form, offering quick installation advantages. Three capacity options are available: 6080, 6080 H, and 80100. The ovens can be powered by electricity, diesel, gas, or solid fuel. The redesigned combustion chamber ensures lower energy consumption while providing high-efficiency baking. This guarantees both superior quality and uniform cooking performance. Fornipa rotary ovens utilize a dual nozzle system for saturated steam production. All external surfaces are made of stainless steel, ensuring long-lasting, hygienic, and professional use. Ideal for industrial bakeries and large-scale production facilities, Fornipa rotary ovens stand out in the market with high performance, energy efficiency, and durability.
| Rototherm Oven | F 6080 D-G-F-E | F 6080 H-D-G-F-E | F 80100 D-G-F-E | |
| Capacity (370 gr - pcs/8 Hr) | 2500 Pcs | 3000 Pcs | 5000 Pcs | |
|
1000 kg. Dough |
1200 kg. Dough |
2000 kg. Dough |
||
| Baking Area | m² | 5,2 / 6,2 | 7,6 / 8,6 | 11,2 / 13,8 |
| Tray Capacity | N | 11 / 13 | 16 / 18 | 14 / 16 / 18 |
| Tray Dimension | mm | 600 x 800 | 600 x 800 | 800 x 1000 |
| 750 x 1040 | ||||

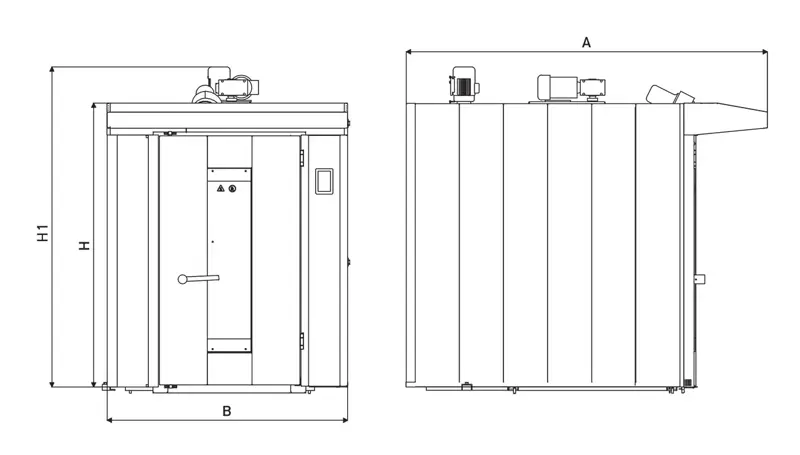

| Width | B mm | 1580 | 1580 | 1880 |
| Lenght | A mm | 2300 | 2300 | 2660 |
| Height | H mm | 1960 | 2260 | 2260 |
| H1 mm | 2225 | 2535 | 2535 | |
| Electric Pwr | kw | 3 | 4 | 4 |
| Heat Cap. For Gas-Diesel | kcal/h | 50 000 | 60 000 | 70 000 |
| Max. Temp | ºC | 320 | 320 | 320 |
| Energy Source | Diesel, Natural Gas and Electric | |||
| Oven Weight | kg | 1400 | 1650 | 2500 |
| Energy Consumption |
Diesel kg/h |
6.5 | 7.5 | 9.2 |
|
Nat.Gas m³/h |
4.9 | 5.5 | 6.85 | |
|
Electric kw/h |
61 | 71 | 85 | |
