ROTOR CONVECTION OVEN

DÖNER KONVEKSİYONLU FIRIN

ROTOR CONVECTION OVEN

The rotor convection oven is ideal for pastry, borek, and bread production. Its compact design allows easy use in small bakery and pastry shops, while high efficiency makes it a cost-effective choice for bakeries and pastry shops.

The oven features a large front glass window, providing a sleek appearance and allowing easy monitoring of the baking process. It is equipped with a powerful steam system and has a capacity of 10 trays measuring 60x40 cm.

Recipes can be saved on the touchscreen, enabling precise control over production processes. The oven is available in gas and electric models.

Double-glass high-insulation doors minimize heat loss, improving energy efficiency. The oven includes a proofing chamber at the bottom, providing an ideal humid environment for yeast-based products.

All external surfaces are made of stainless steel, ensuring hygiene and long-lasting durability.

For detailed technical specifications and performance information, please refer to the table below.

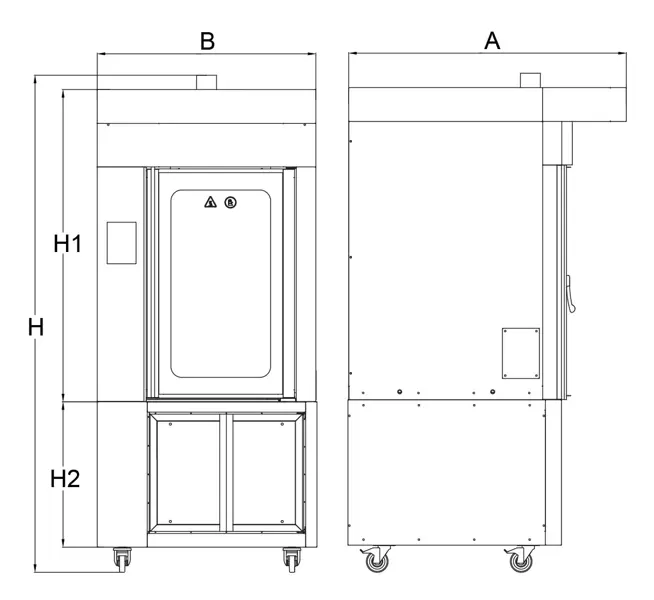

Rotor Convection Oven   F 6040 E-10 T- R F6040 G-10 T - R
External Dimension A 1260 1260
B 990 990
H mm 2200 2200
H1 mm 1360 1360
H2 mm 770 770
Tray Dimension mm 400x600 400x600
Tray Capacity Pcs 10 10
Distance Between Trays mm 82 82
Heat Capacity kcal/h - -
Max Temp C 300 300
Electrical Pwr kw/h 23 1.5
Weight kg 240 290
